Technical parameters：

 *the voltage can customize according to your country standards.

Machine features:

This product is suitable for blank label. Die cutting,slitting , rewinding can be in one process. It have automatic tension controller system for unwinding and rewinding, Automatic inflating air for air shafts, Optional Start and stop by foot. This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions. The unwinding is controlled by the two photoelectric eyes. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily.

Rotary die cutting station:

Die cutting length from 178-470mm(7" - 18,5").

Anvil cylinder.

Ability to cut from top or bottom.

Adjustable waste rewinder with magnetic powder clutch and 3 inch air shaft.

Standard configurations:

1.One slitting station.

2.One die cutting station

3.With 1pc 3’’ unwinding shaft, 2pcs 3’’ rewinding shafts( the size of

shafts can do as your requirements).

4. With meter/number counter.

5. With two photoelectric eyes

6. With 8 sets of round slitting knives

7.One magnetic brake,two magnetic clutches

8.Machine has blower fan to blow away the trimmed edge

Options:

Die cutting mould (or magnetic cylinder+flexible die)

Extra set of blades

Laminating system

Winding shaft 1", 2" and 3’’.

and much more

Application:

1. Designed  for die cutting paper,sandpaper,adhesive tape, protective film, copper

foil, aluminum foil,felt pad, OPP, PE, PVC,PET, printed label,sandpaper,sticker and cloth,etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather,

plastic, etc.

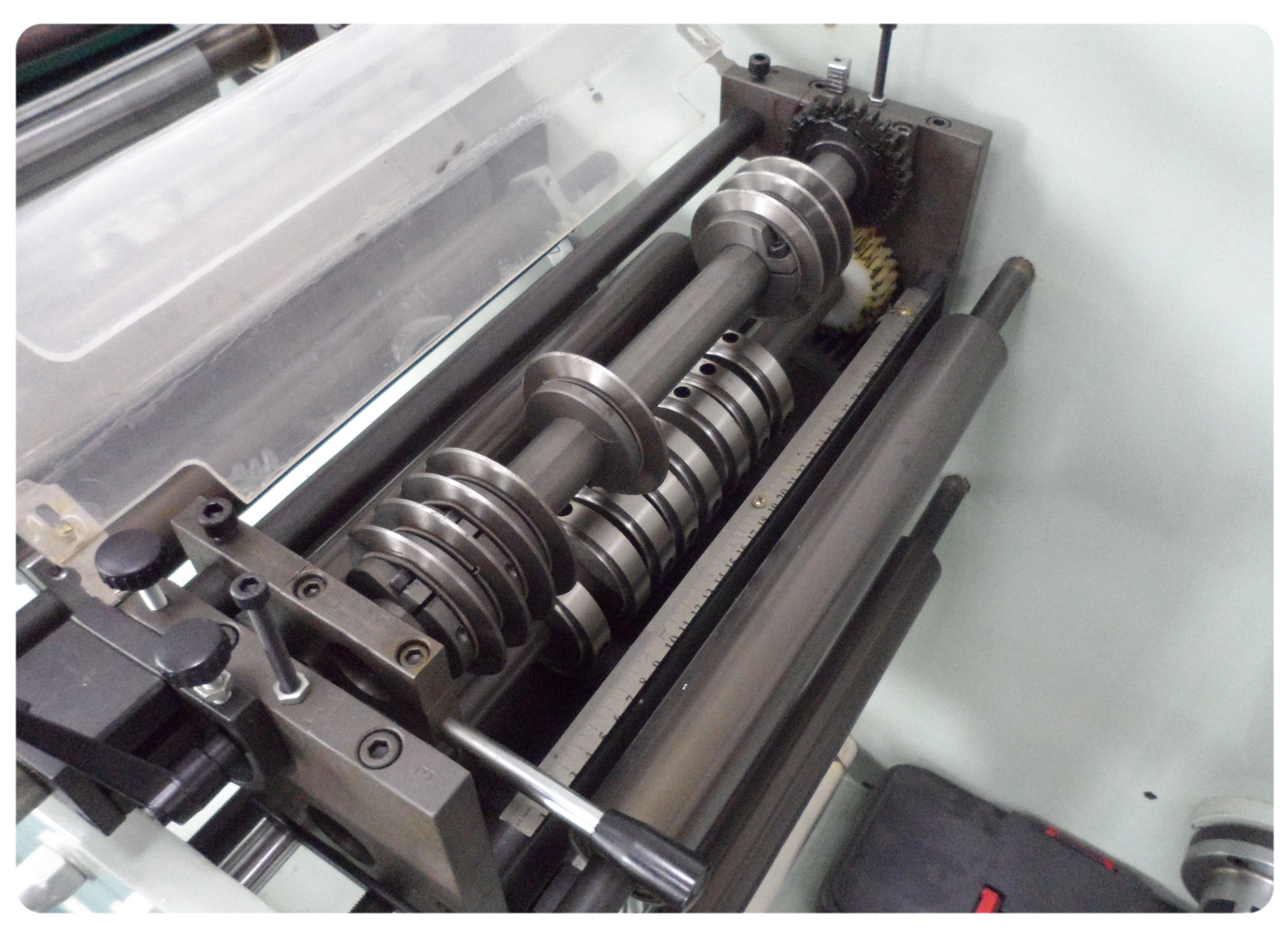

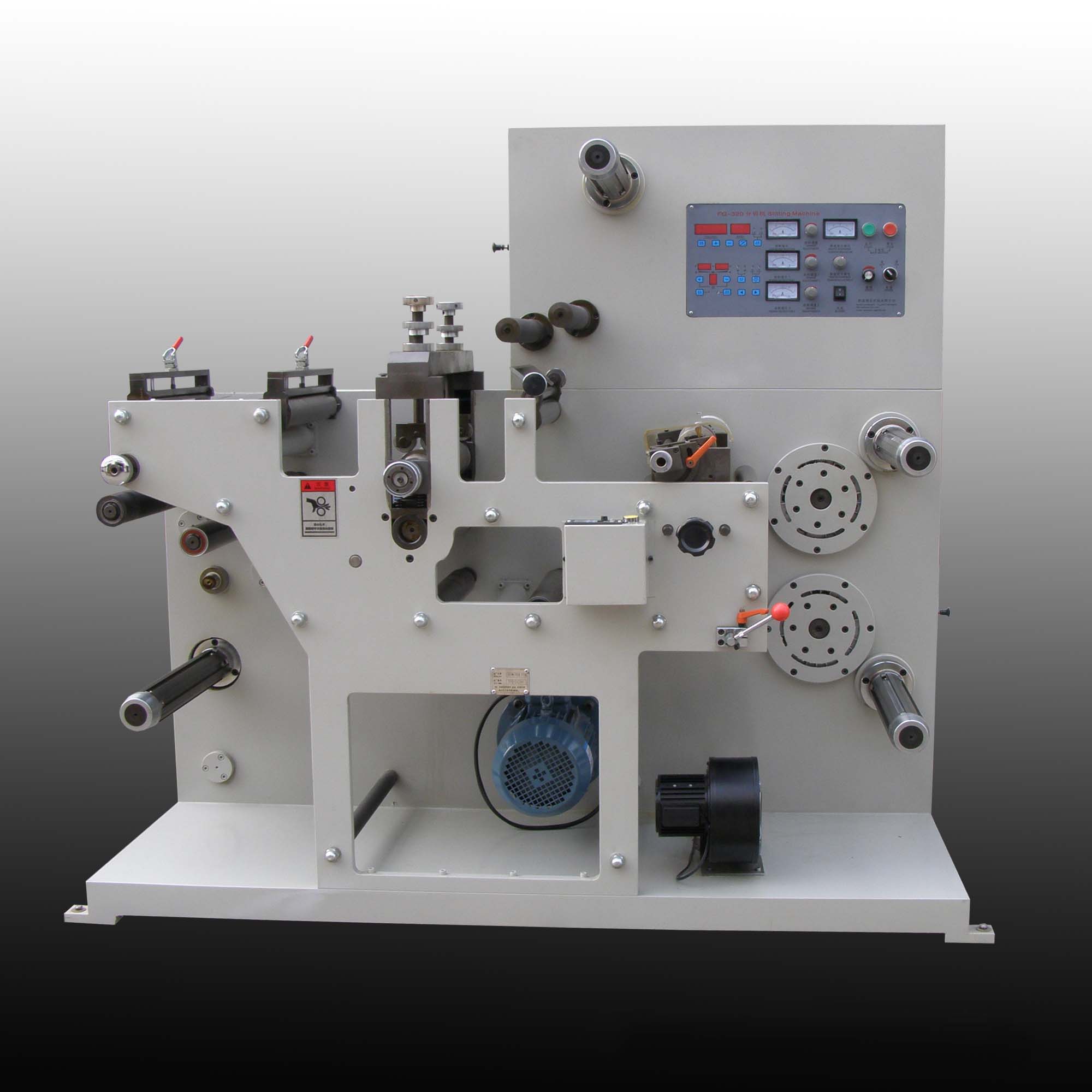

Product details:
